HUAWEI Mini SC Waterproof Quick Field Assembly FTTH Connector

  • 1
  • 2
  • 3

Brand Name : DOWELL

Model Number : DW-HWF-SC

Place of Origin : China

MOQ : 1000 pieces

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 500 PCS Per 7 Days

Delivery Time : 7-15 Days

Insertion Loss : ≤0.50dB

Return Loss : ≥55dB

Connector Type : SC/APC

Ferrule Material : Full ceramic zirconia

Waterproof Rating : IP68 (1M, 1 hour)

Cable Compatibility : 2.0×3.0 mm, 3.0 mm, 5.0 mm

Contact Now

Mini SC IP68 Waterproof Field Assembly Fast Connector

The Huawei Compatible Mini SC Waterproof Field Assembly Reinforced FTTH Connector is a robust, field-installable solution designed to support secure, high-performance single-fiber SC connections in outdoor environments. Engineered for flexibility and durability, it features an IP68-rated sealed design, a bayonet-style latch, and a push-pull insertion mechanism for tool-free, quick installation. Compatible with multiple cable types and systems, this connector ensures stable performance in fiber optic networks subjected to extreme environmental conditions. Its compact, hardened design minimizes splicing, reduces maintenance needs, and guarantees reliable connections for years to come.
Specification:
Parameter Specification
Waterproof Rating IP68 (1M, 1 hour)
Cable Compatibility 2.0×3.0 mm, 3.0 mm, 5.0 mm
Insertion Loss ≤0.50dB
Return Loss ≥55dB
Mechanical Durability 1000 cycles
Cable Tension 2.0×3.0 mm, 3.0 mm: ≥30N; 5.0 mm: ≥70N
Drop Performance Survives 10 drops from 1.5 m
Connector Type SC/APC
Ferrule Material Full ceramic zirconia
Features:

1.1 IP68 Waterproof Design: Provides excellent water, dust, and corrosion resistance.
1.2 Quick Field Installation: Tool-free assembly with a push-pull insertion mechanism.
1.3 Durable Material: PEI construction for UV, acid, and alkali resistance.
1.4 Wide Cable Compatibility: Supports both flat and round cables, including 2.0mm, 3.0mm, and 5.0mm options.
1.5 High Reliability: Withstands up to 1,000 insertion cycles and cable tension up to 70N.

Application:

2.1 FTTH and FTTA networks for outdoor fiber connections.

2.2 Telecom networks, including 5G base stations.

2.3 Industrial and military communication in harsh environments.

2.4 Video surveillance and broadband data transmission.

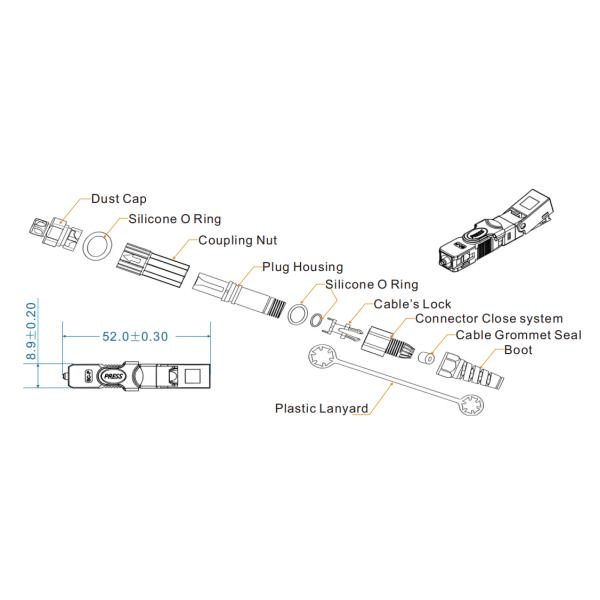

Structure:
HUAWEI Mini SC Waterproof Quick Field Assembly FTTH Connector
